Product Details
We're here to help - contact us if you're not sure this is the right replacement engine or part for your equipment.
Gates' proprietary ethylene construction process provides a superior combination of flex and load-carrying capacity, transmitting up to three times the horsepower versus comparably sized belts. Super HC MN V-belts put more power where high speeds, high speed ratios or small pulley diameters are required, offering significant benefits over classical section V-belts. When your power transmission application needs a high horsepower solution but is constrained by drive weight or physical space, the answer is Super HC Molded Notch belts.
Item Details
SKU

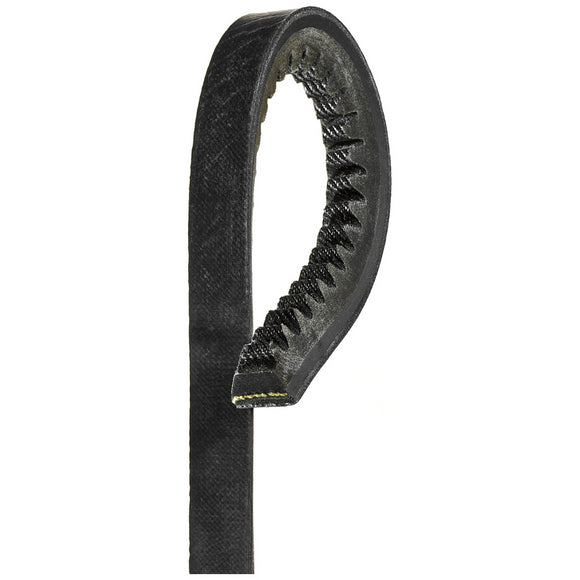

GT,3VX450
Brand
Gates
Features
🞽
Top Width: 0.39"; Length: 44.46"; Angle: 44-degrees; Thickness: 0.31"; Material: Ethylene Elastomeric
🞽
Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.
🞽
Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves, which improves belt life and reduces expensive maintenance time.
🞽
Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves, which improves belt life and reduces expensive maintenance time.
🞽
Patented Ethylene compound and optimized notches molded into the belt during manufacturing increase flexibility and transmission efficiency, which allows for a more compact and highly economical drive design by reducing size of pulleys, bearings, guards and mounts.
🞽
Recommended for use on all industrial heavy-duty, narrow section V-belt drives. All sizes meet Gates V80� system matching tolerances.
